170 ATC ColdFire Controller

SWARCO McCain’s 170 ATC ColdFire Controller is a modernized version of the 170 family of controllers featuring a Freescale ColdFire 32 Bit micro-controller. The 170 ATC ColdFire is a drop-in replacement for 170 controllers with superior computing power and performance.
The controller is a cost-effective alternative to 2070 controllers.


Benefits

  • Better performance than a 2070 controller
  • Menu driven LCD front panel (2070 compatible)
  • Onboard temperature sensor provides internal
    controller temperature readings.
  • Custom built-in operating system
  • True Ethernet capability
  • USB mass-storage device interface

Standard Features

Operating System

  • Uses a custom BIOS
  • Application program interface (API) available from
    McCain for third party software development

Modules (standard, included)

  • CPU Module
  • Input Module
  • Output Module
  • LCD/Front Panel Module
  • Power Supply

Microprocessors

  • CPU Module: Freescale MCF5282CVM66, 32 Bit MCU

Memory

  • 16 MB SDRAM
  • 64 KB SRAM
  • 32 KB Serial EEPROM
  • 8 MB Flash memory

Backup real-time clock

Applicable standards

  • Compatible with Caltrans TEES standards as applicable
    to 170 controllers

Crystal control and AC line tracking via software PLL



Interfaces

Communication Interfaces

  • RS232 Serial ports (4) of which (1) can be rerouted to FPA
  •  Modem slots (2)
  • Ethernet port
  • USB port

Front Panel Interfaces

  • Display: 8 lines x 40 characters
  • Keyboards: 3 x 4 navigation and 4 x 4 data entry keypads

Cabinet Interfaces

  • Rear connectors C1S, C2S, C20S, C30S, C40S, and T1

General Specifications

Dimensions 19"H x 7" W x 13"D (rounded to the nearest inch"
Form Factor EIA rack mount compatible
Power Download cut sheet
Environment

Operating Temperature: -37° C to +74° C

Humidity: 0 to 95% (non-condensing)

Weight 15 lbs (± based on final module selection)

Options

  • McCain control software

Available Modules

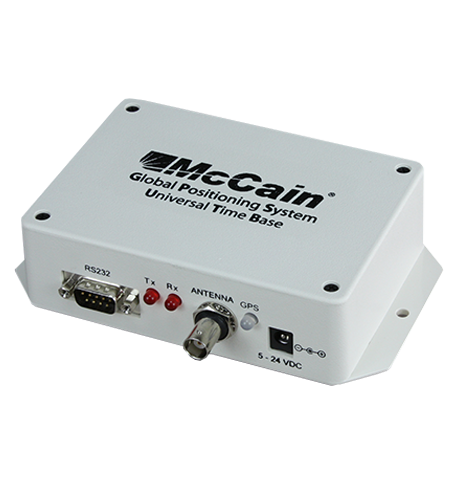

  • GPS (Global Positioning System) module
  • Modem module
